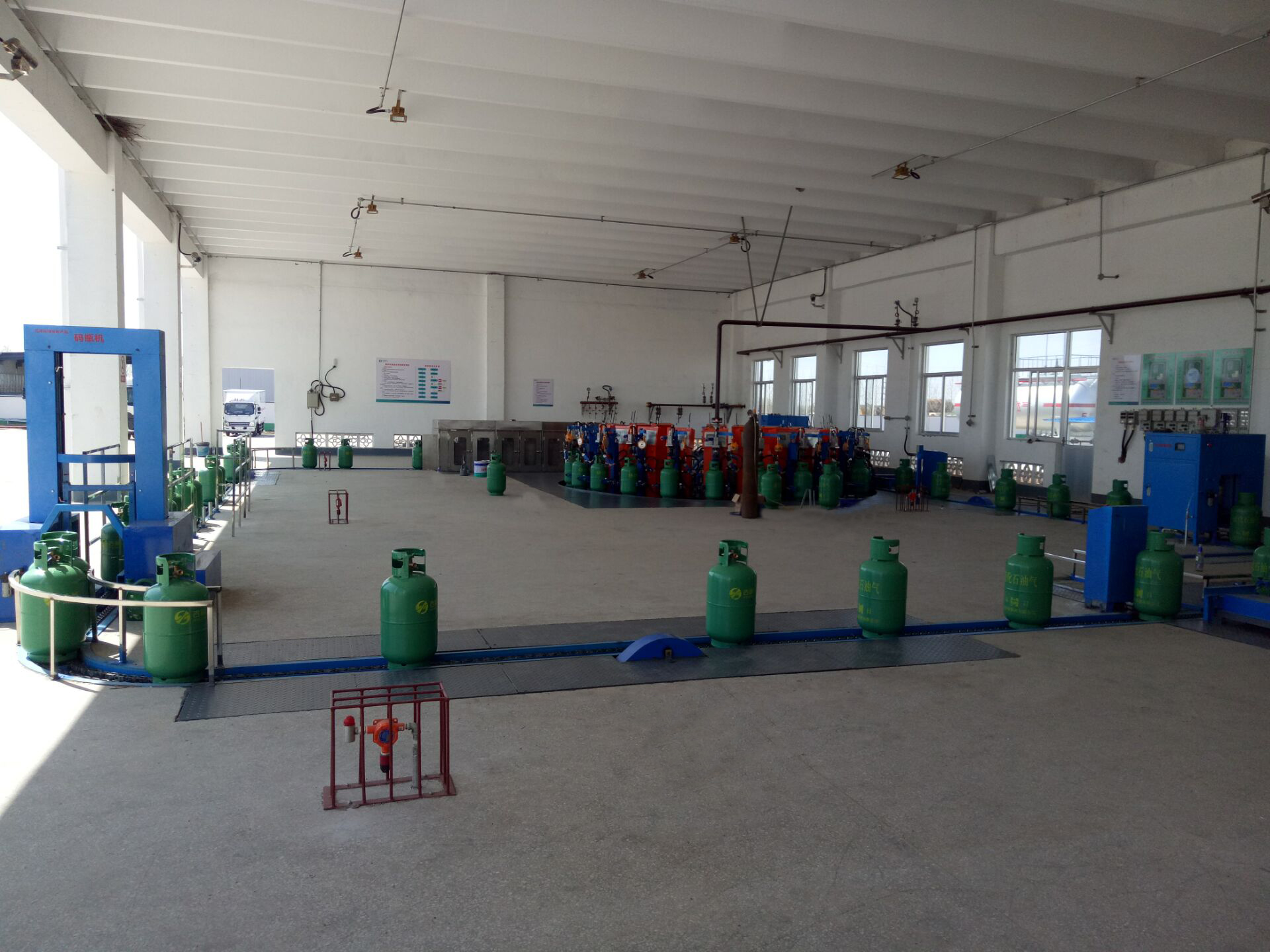

Intelligent LPG Automatic Filling Line

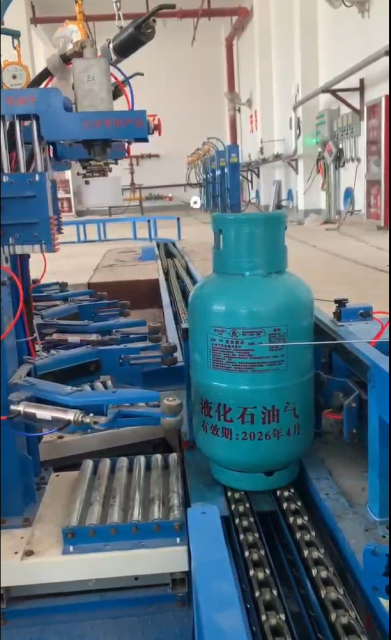

Fully Automatic LPG Filling Equipment is an intelligent unmanned filling production line. It is equipped with a smart valve manipulator, automatic turntable, and automatic conveying mechanism to automatically complete the entire process of bottle feeding, valve opening, quantitative filling, overfill protection, and bottle discharging.
The equipment features high-end imported components and a modular structure, delivering high filling accuracy, continuous operation capability, and full data traceability. It is widely suitable for large-scale filling plants and industrial gas supply projects, and supports non-standard customization.
Independently Developed & Industry-Proven

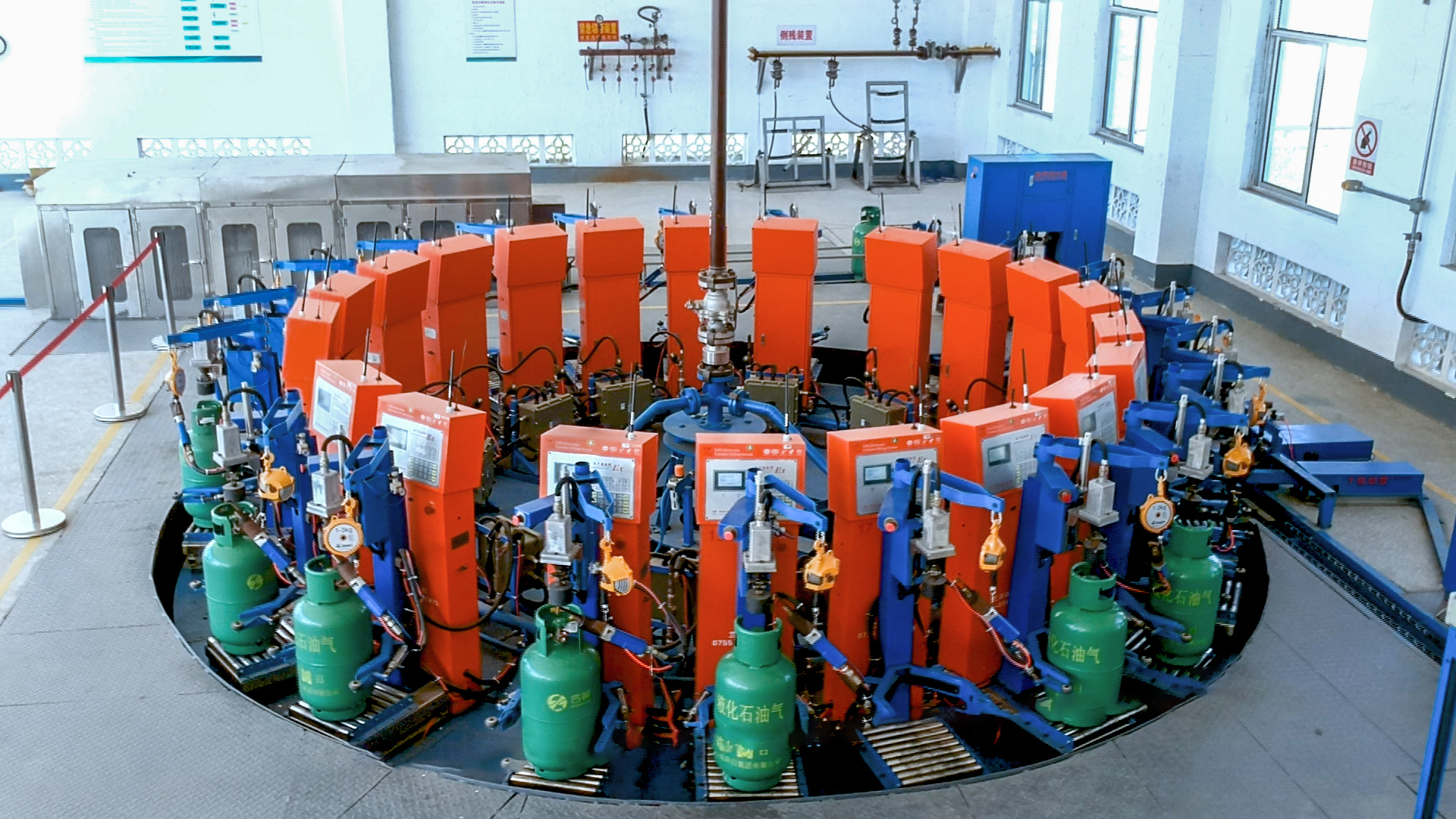

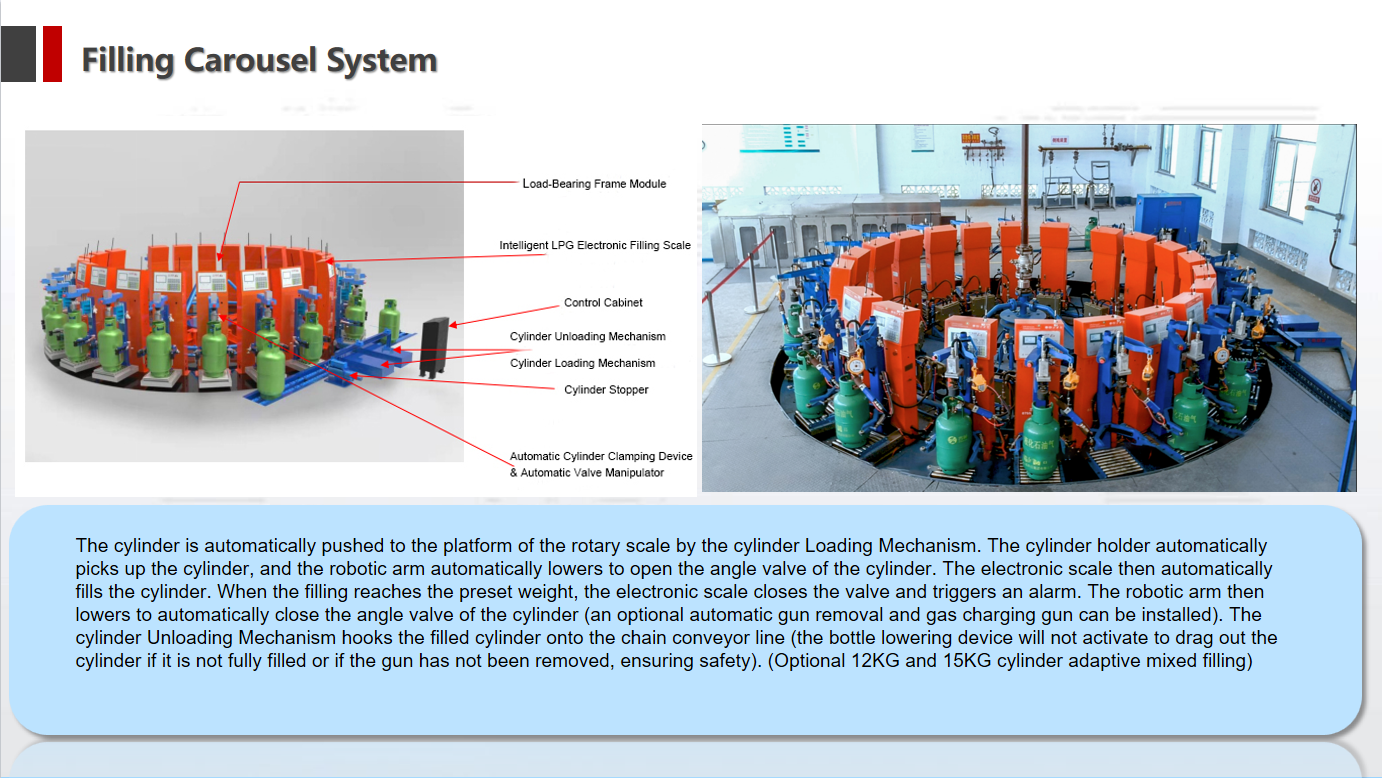

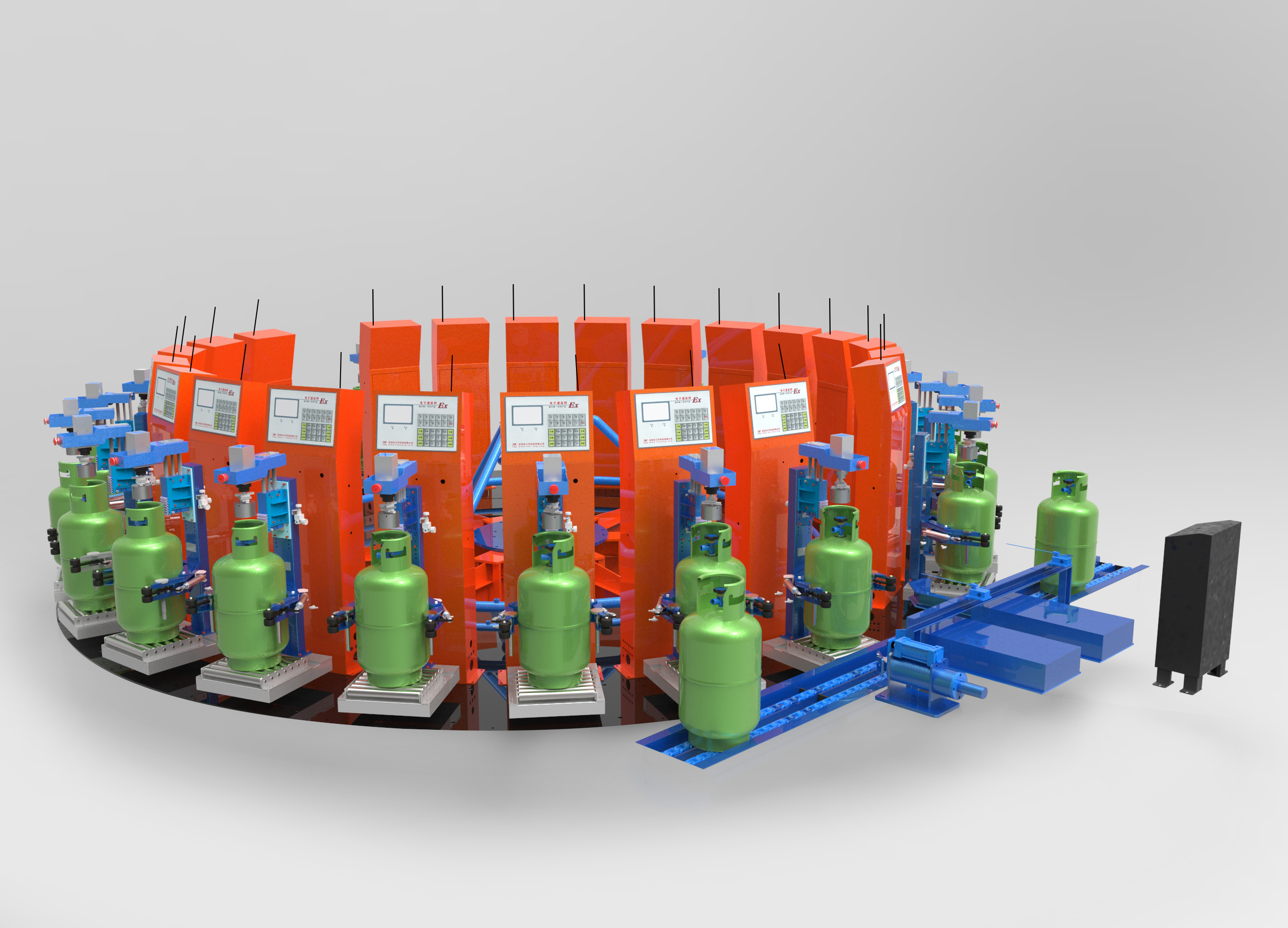

The rotary LPG filling equipment, independently developed and manufactured by our company, is an intelligent flexible filling system for liquefied petroleum gas cylinders. The equipment automatically adapts to cylinders of various specifications for precise filling, making it widely applicable to all types of LPG filling stations and plants. It is a well-adopted automated filling solution within the industry.
Flexible Adaptation – A Leading Solution
8KG,10KG,13kg,15KG automatic adaptation, the only flexible automatic filling line in the world.A new adaptive, smarter, and cheaper way to automatically fill. Filling stations can be customized according to user needs.
Modular Design – Configure as Needed

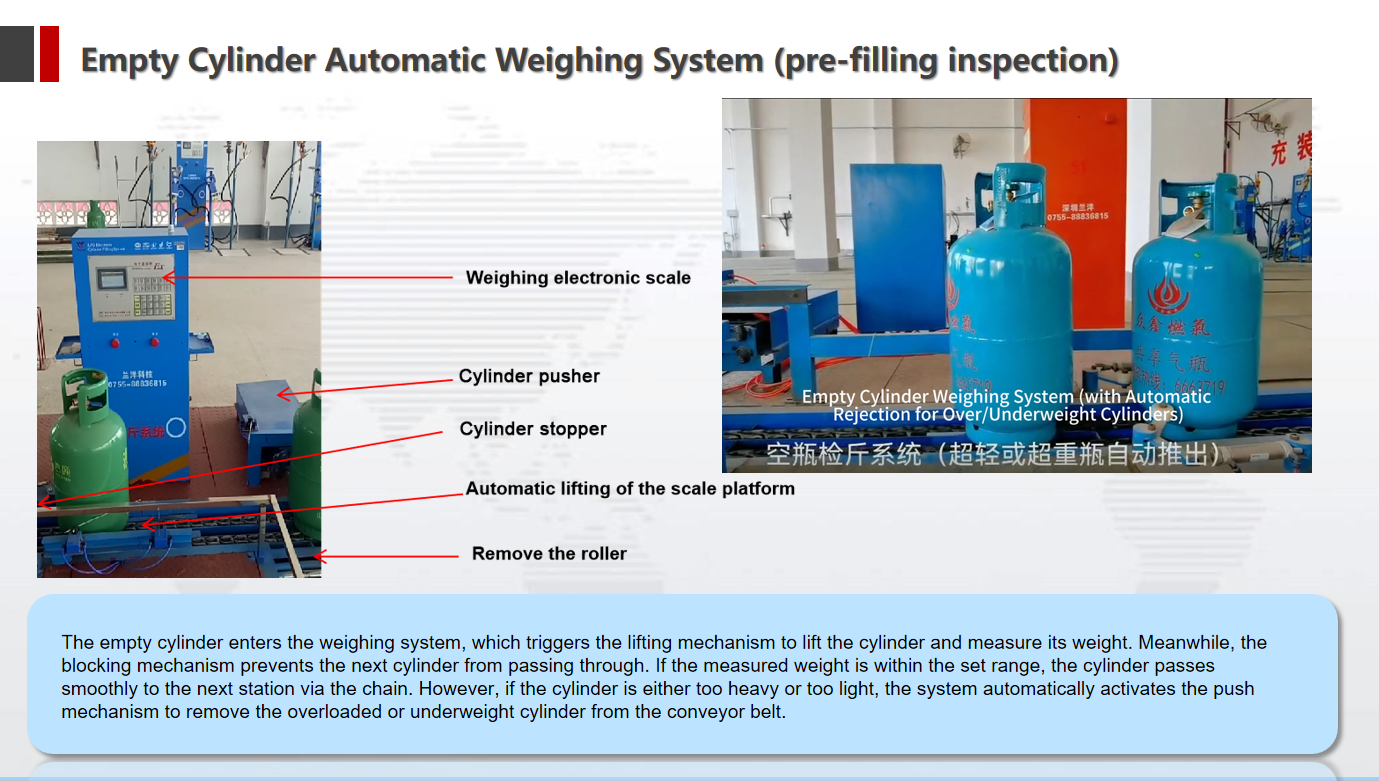

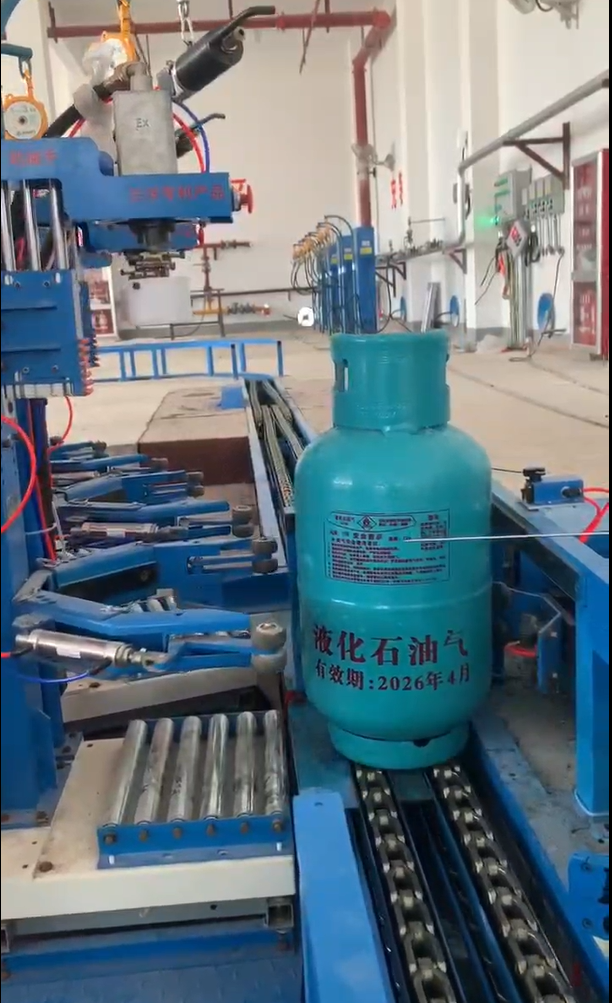

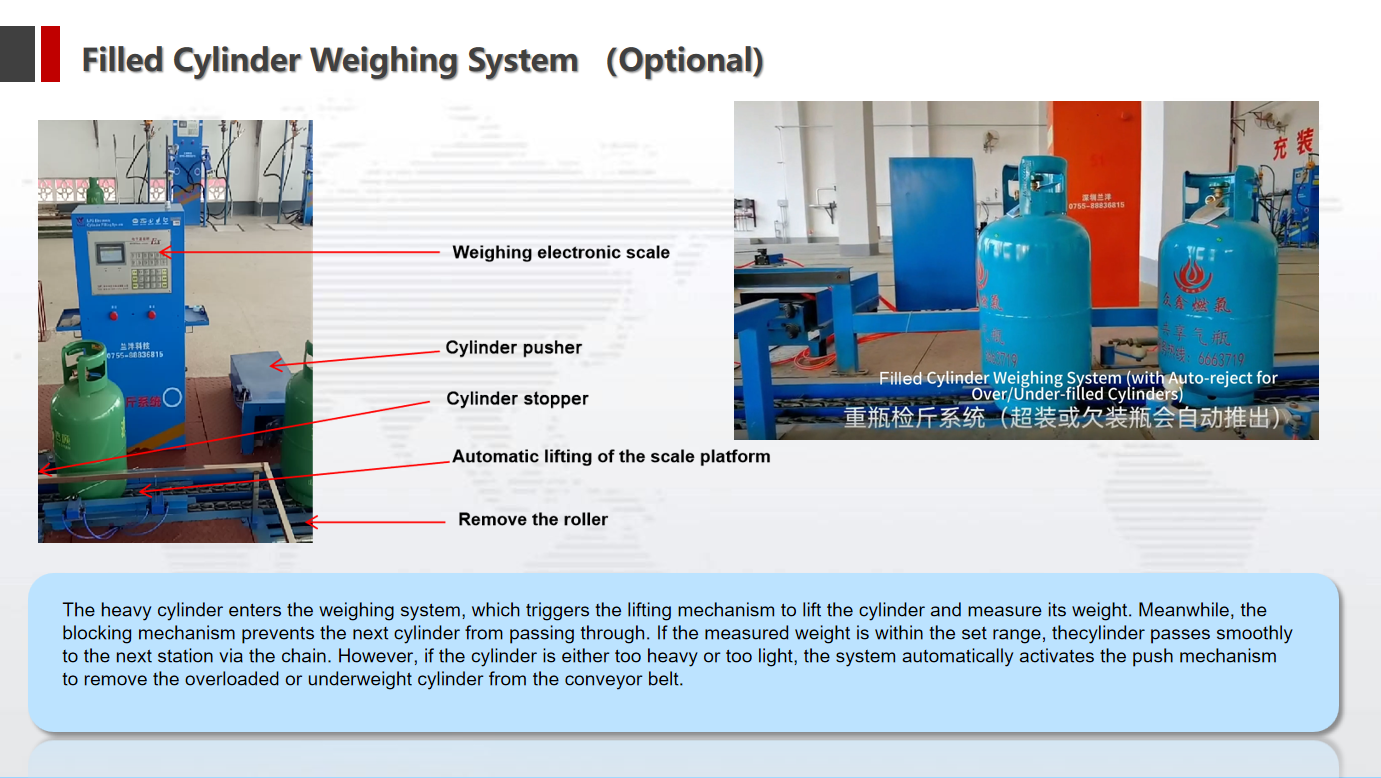

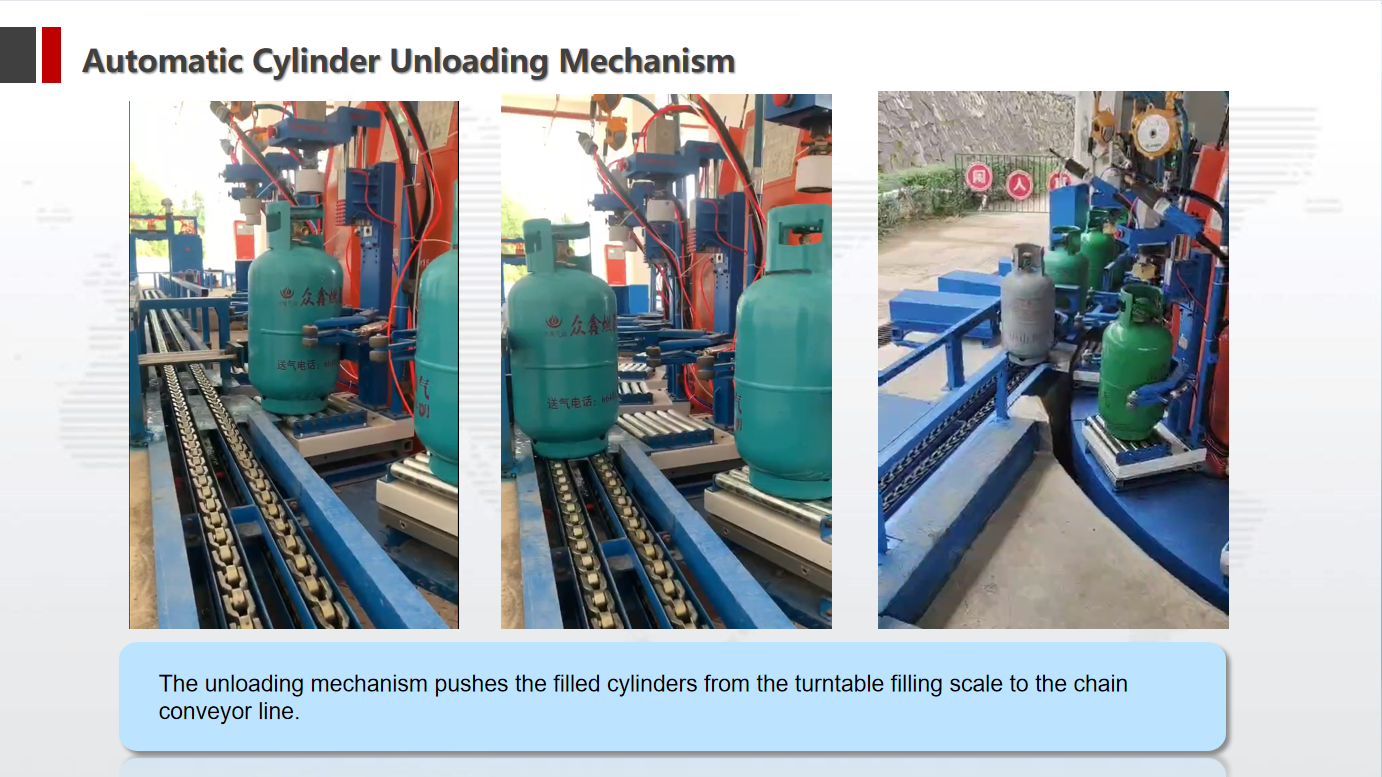

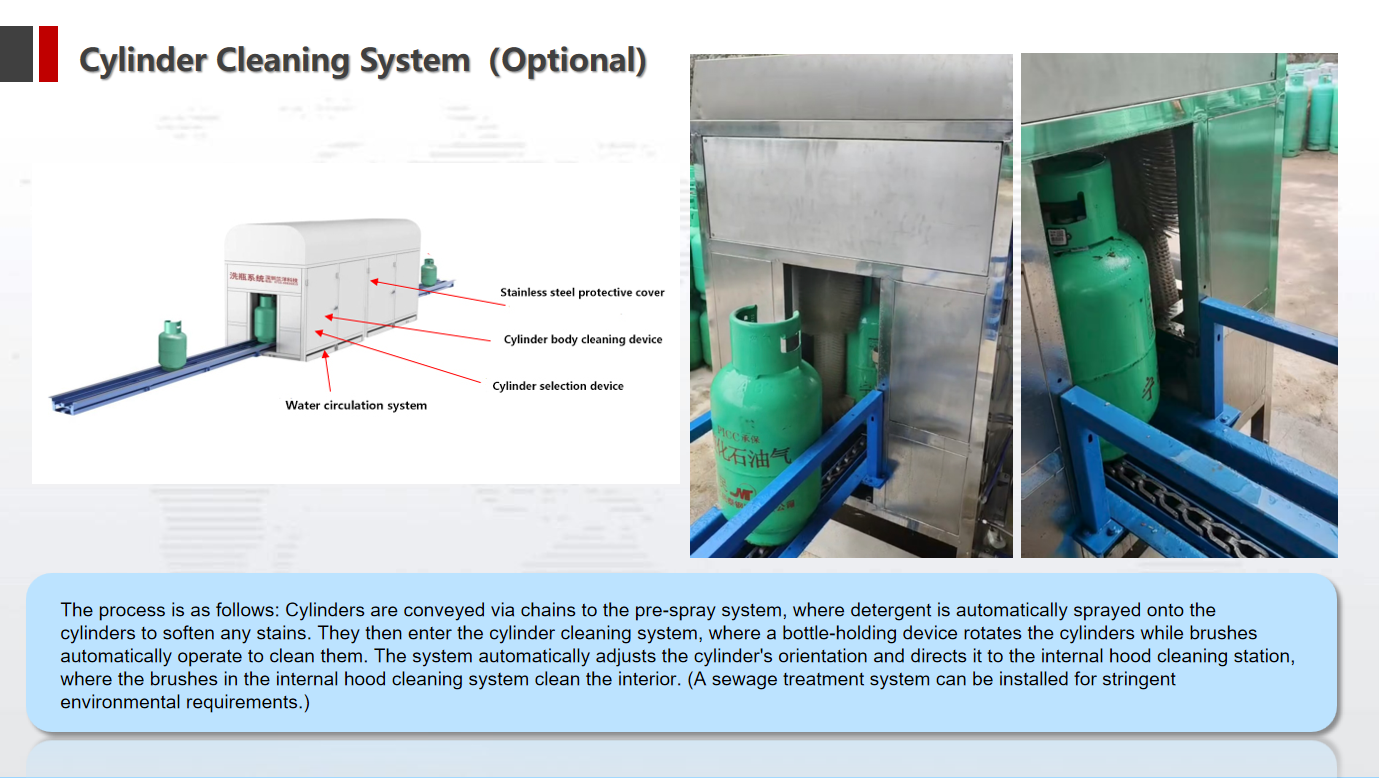

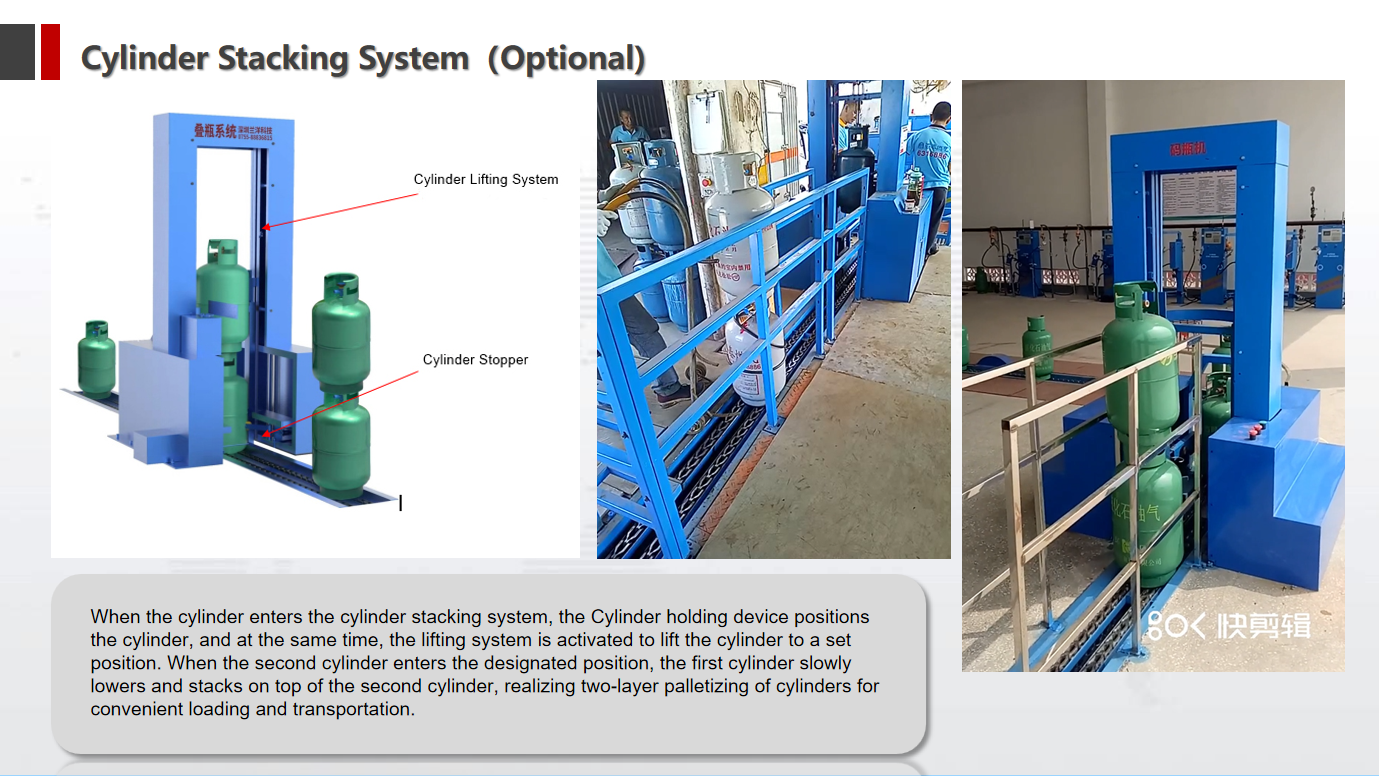

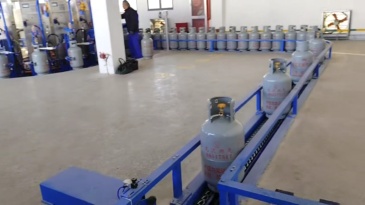

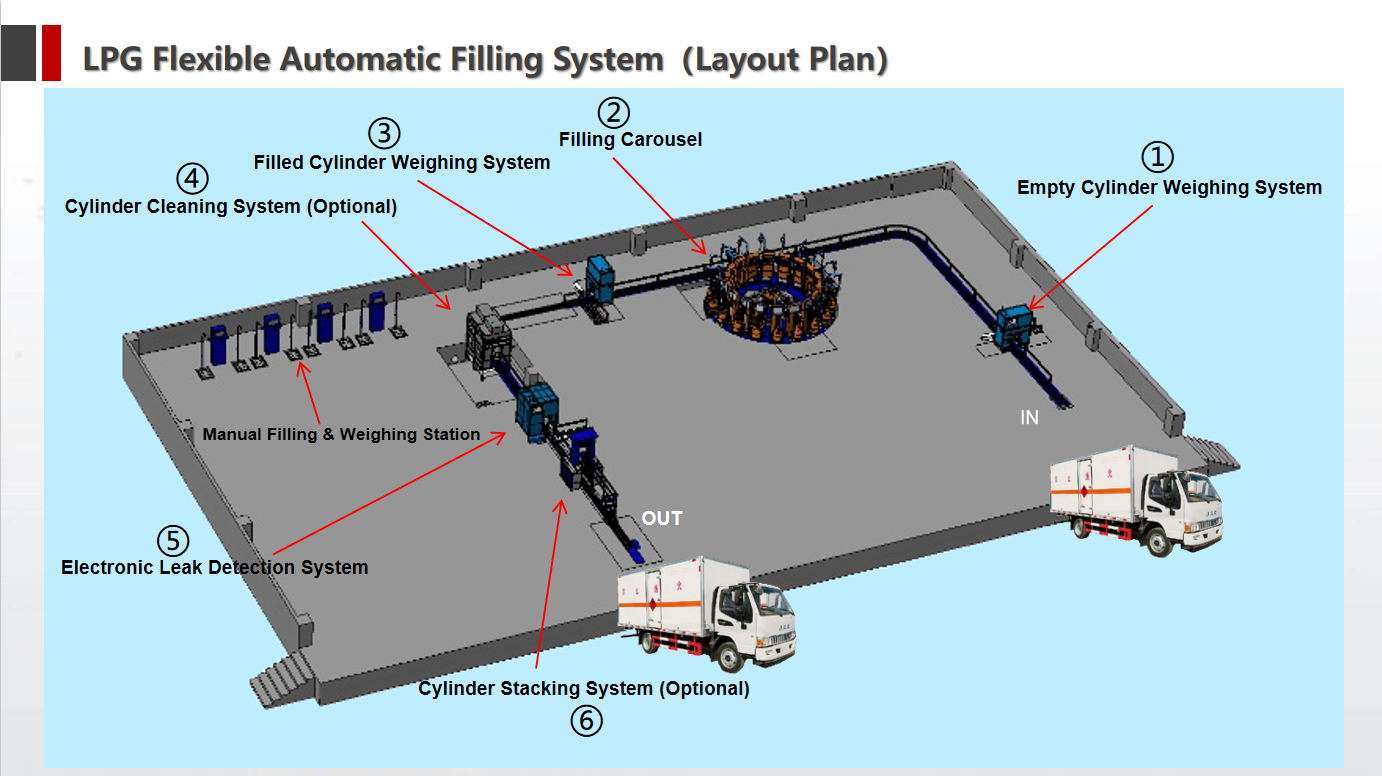

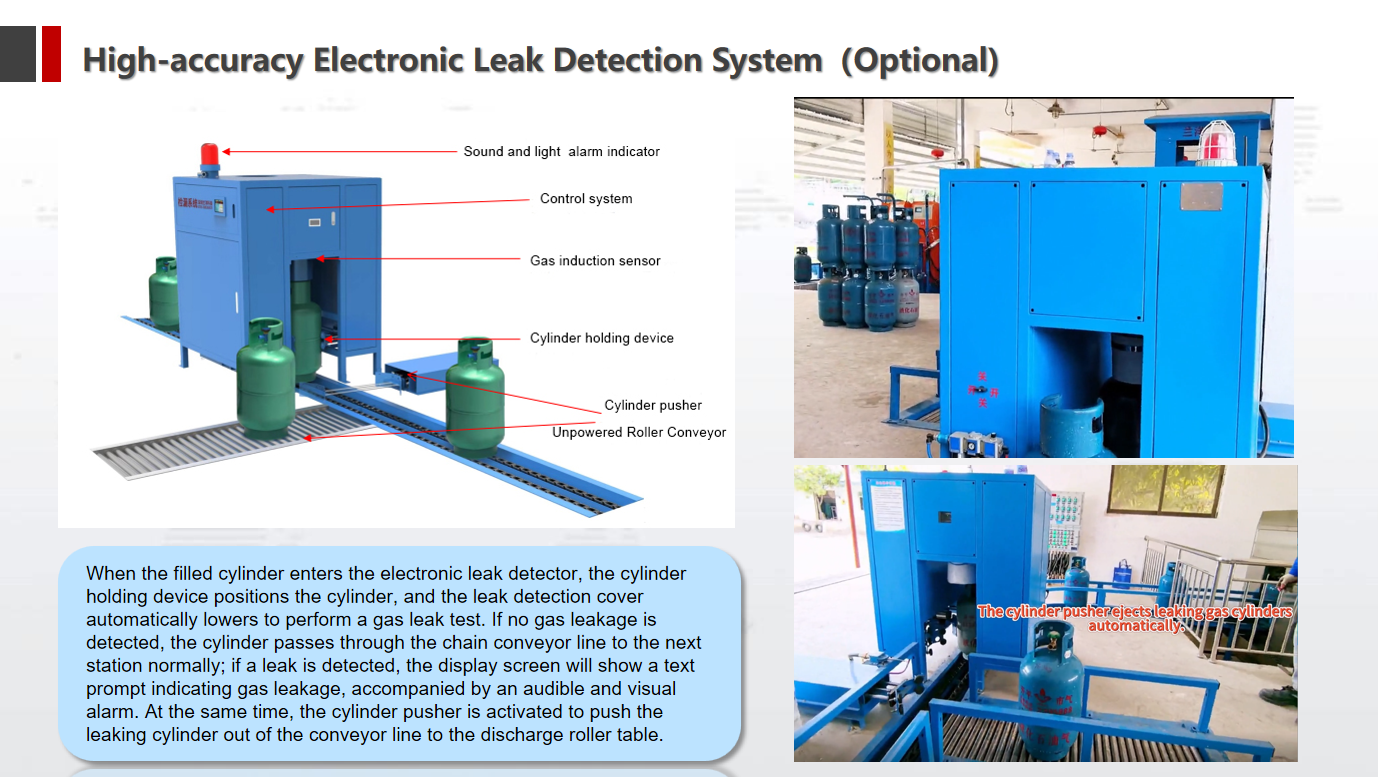

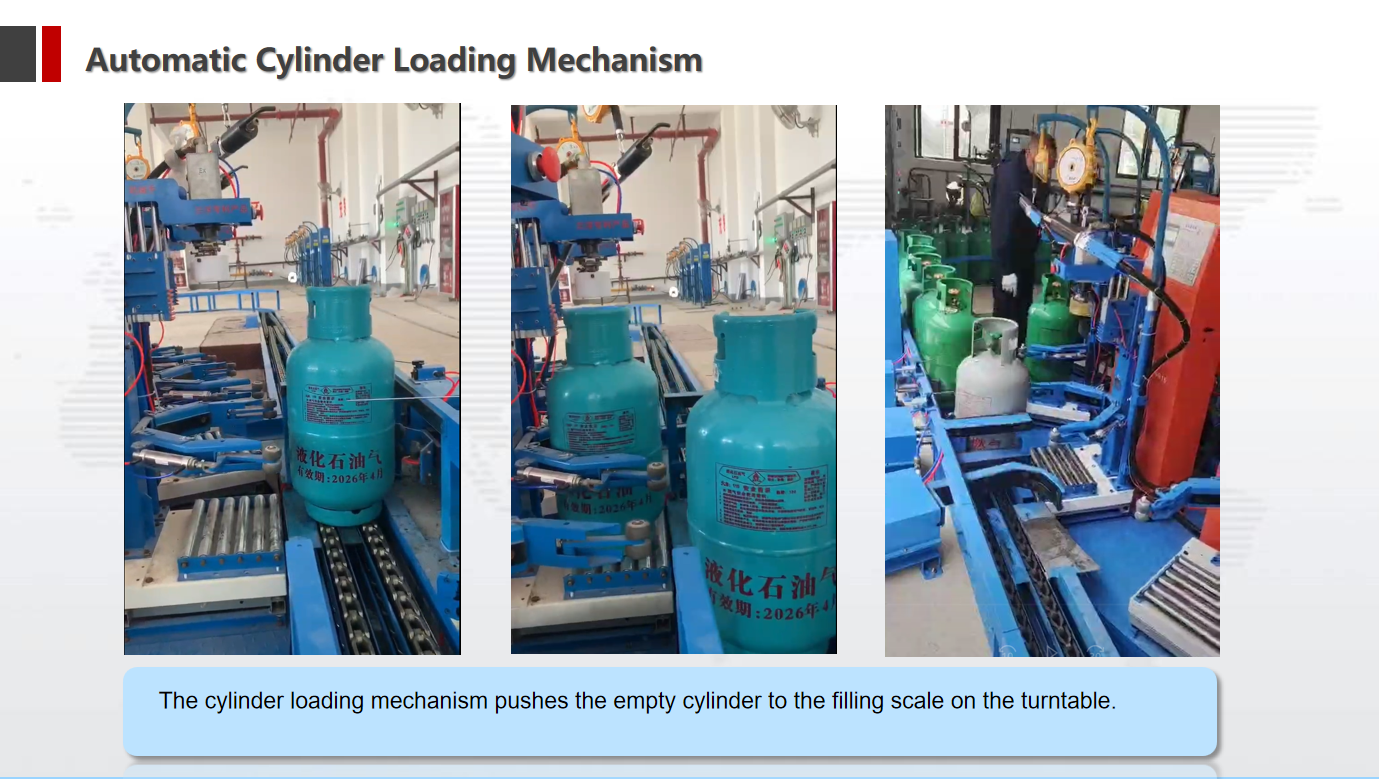

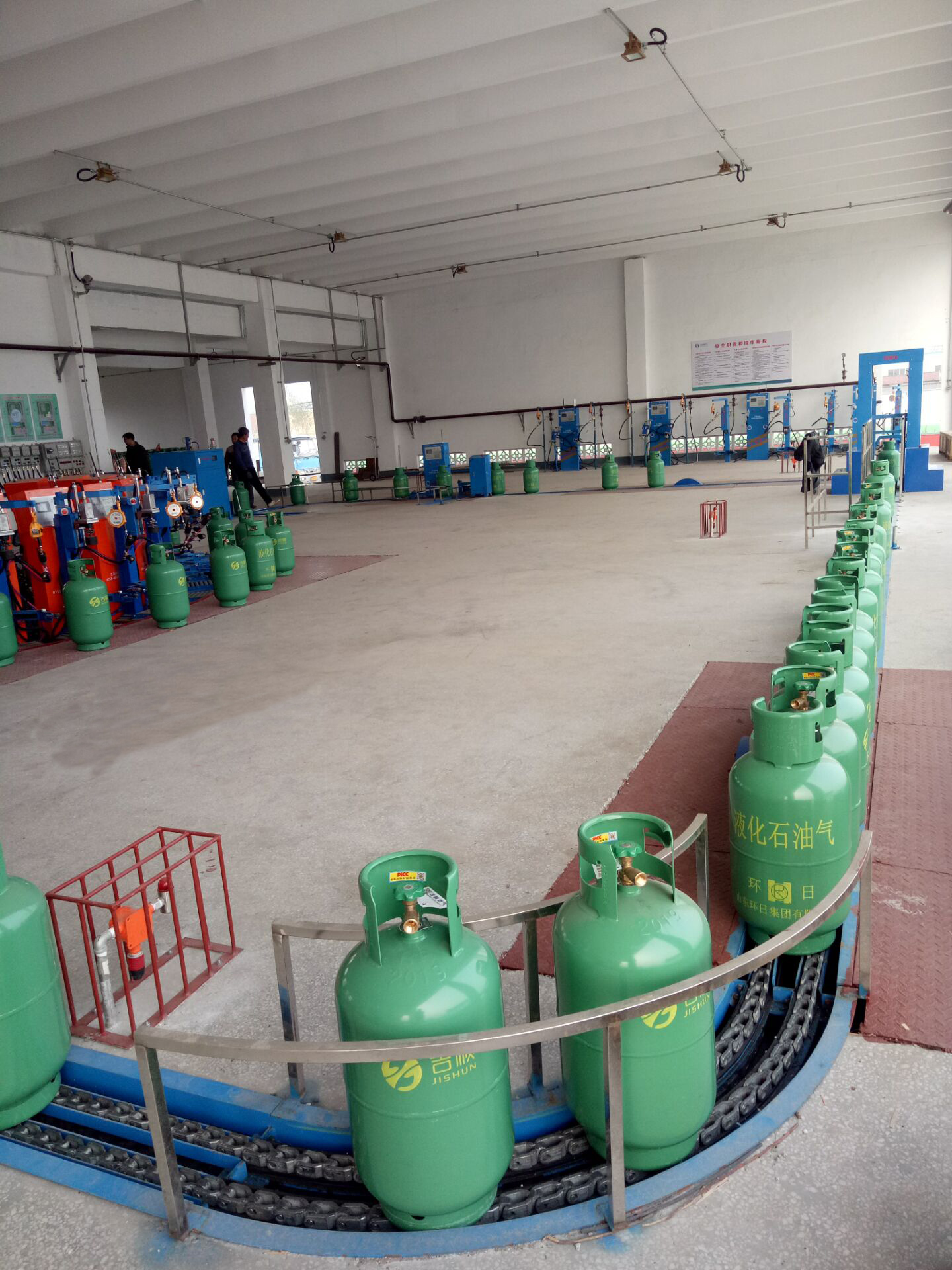

The system features a modular design, allowing customers to flexibly configure the following functional modules based on actual operational needs: rotary turntable platform, 6 to 36 filling units, chain conveyor, automatic cylinder loading and unloading mechanisms, empty and full cylinder weighing systems, electronic leak detection system, cylinder cleaning system, valve sealing inspection system, and cylinder palletizing system.
Patent-Protected & Safety-Compliant
The entire system is protected by proprietary patented technology and strictly complies with Chinese national safety standards and explosion-proof certification requirements. With outstanding stability and safety, it empowers customers to achieve efficient and intelligent filling operations.
The main features include:
1. Innovative Turntable Structure for Smooth and Efficient Operation

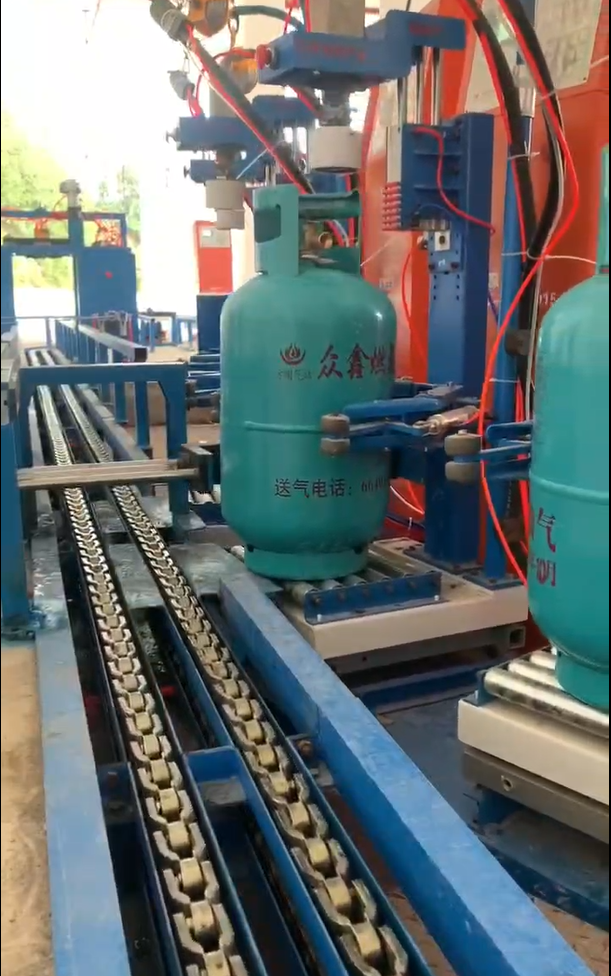

The turntable main body features a new rotating ring design, equipped with a fully suspended anti-eccentric-load heavy-duty bearing roller structure. It offers significant advantages such as smooth operation, low power consumption, stepless speed regulation, and easy maintenance. The integrated design combines direct-push bottle lifting and hook-pull bottle lowering mechanisms, ensuring a simple structure and reliable action.
2. Intelligent Valve Switching System Compatible with Various Handwheels

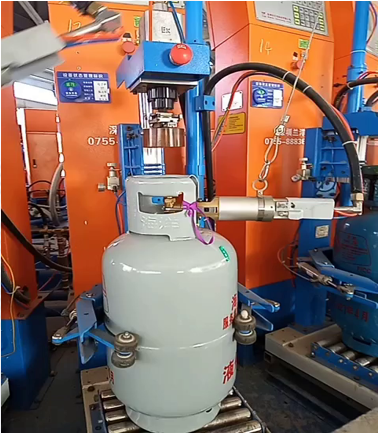

The valve switching manipulator adopts a control method combining stepper motor drive and pneumatic lifting, enabling flexible adjustment of clamping force and rotation speed. The gripper features a universal design that adapts to various shapes of cylinder handwheels, offering strong compatibility.
3. International Brand Components with Strong Information Management Capabilities
Key components are sourced from well-known domestic and international brands, ensuring stable operation and reliable quality. The entire system is independently developed by our company, featuring high filling accuracy and strong scalability. It fully meets the requirements for traceability and information management of the cylinder filling process.
4. Multi-Specification Adaptability for Flexible Matching of Different Cylinders
The system demonstrates excellent adaptability, accommodating filling operations for cylinders of various specifications to achieve flexible production.
